How to Install an SKF Speedi-Sleeve: Maintenance Guide

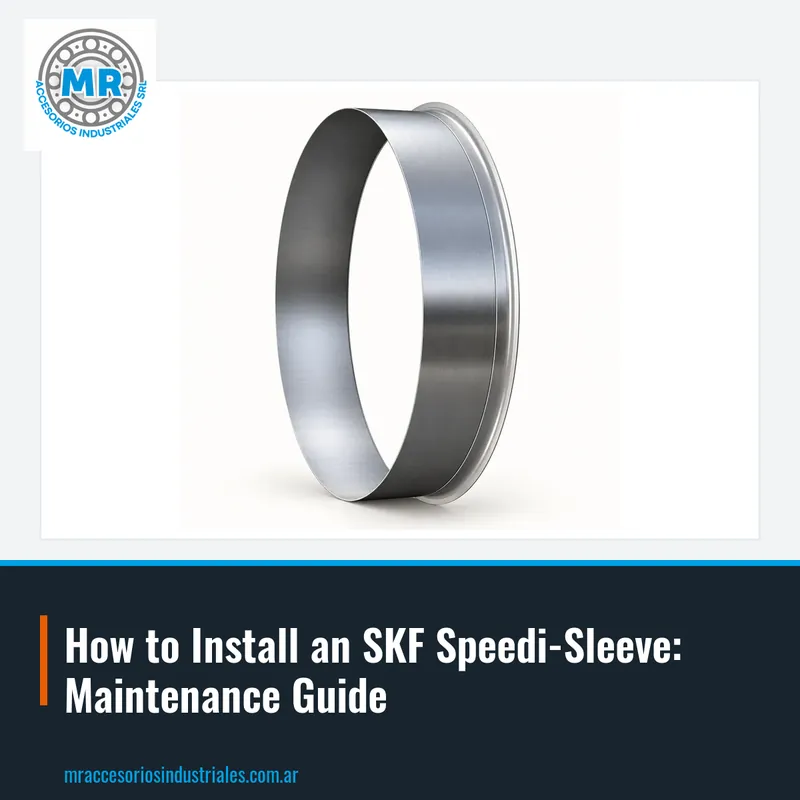

The Speedi-Sleeve wear sleeve is the classic solution when the seal lip has scored a groove on the shaft and it starts losing oil or grease. Instead of disassembling the entire assembly to regrind or replace the shaft, a thin-walled sleeve is placed over the damaged area and a new seal is remounted. This restores the support surface without modifying the original shaft dimensions.

This resource is used in gearboxes, pumps, electric motors, compressors, and agricultural or road equipment. Whenever the shaft has a deep mark or localized wear from friction, it is worth evaluating the installation of a Speedi-Sleeve. The main advantage is that it avoids disassembling heavy or costly components and shortens downtime.

To determine if your case applies, look at the shaft with good lighting and run your fingernail over the seal contact area. If you feel a step or groove, the sleeve is a good alternative. Then measure the diameter at several points to confirm it is within the range of the chosen sleeve. With that data, you can request the correct reference from us.

Shaft measurement is the most important step to avoid choosing the wrong sleeve. Use a micrometer or precision caliper and take the diameter at at least three different points on an unworn area of the shaft, near where the seal seats. Do not rely on a single measurement: this way you detect if the shaft is oval.

Speedi-Sleeve sleeves are manufactured in standard sizes that cover a small range of diameters. Therefore, if the shaft is very oval or has a pronounced step, it may be necessary to prepare the surface before mounting the sleeve. Record the measurements accurately and compare them with the manufacturer's table or send them to us so we can confirm the reference.

A common mistake is measuring right on the worn groove or relying on the diameter of the flat without verifying it. Another is using an uncalibrated caliper or placing it incorrectly. Take the time to measure well: a poorly chosen sleeve will not fit or will be loose and will not perform its function. If you have doubts, send us a photo of the shaft with the caliper in place and we will help you decide.

Before mounting the sleeve, the shaft surface must be clean and free of burrs. Use fine sandpaper or a honing stone to remove sharp edges, rust, or remnants of material from the old seal. It does not need to be polished to a mirror finish, but a smooth surface is needed so the sleeve slides without getting stuck.

If the shaft has a very deep groove, you can fill it with metal-filled epoxy putty and let it cure before installing the sleeve. This prevents a cavity under the sleeve that could deform under seal pressure. Then clean the area with a clean cloth and a mild degreaser.

Do not use direct heat or blows to prepare the shaft. The Speedi-Sleeve is designed to be mounted cold with its tool, so the surface only needs to be clean and smooth. If the shaft has very pronounced rust marks, you can use a fine wire brush before sanding.

Each Speedi-Sleeve comes with its installation tool, a driver that rests on the sleeve and distributes the force. The sleeve is presented at the end of the shaft, the tool is placed on top, and the tool is tapped gently, advancing evenly.

The key is for the sleeve to enter straight, without twisting. Therefore, it is advisable to tap alternating sides of the tool and verify that it advances evenly. If it gets stuck, do not force it: remove it carefully and check if there is any burr or dirt on the shaft. The sleeve must advance until it completely covers the area where the seal lip works.

Once mounted, the sleeve flange can be left or removed depending on available space. If it interferes with seal mounting, it is removed carefully with cutting pliers. Do not use a grinder or tools that generate excessive heat, as you can deform the sleeve.

After mounting the sleeve, the outer diameter is slightly larger than the original shaft. Therefore, generally the same seal that corresponded to the shaft is used, because the sleeve is designed to maintain working dimensions. However, it is advisable to verify the fit of the seal lip on the new sleeve.

If the old seal was very worn or damaged, replace it with a new one of the same size. The sleeve surface is new and smooth, so the lip rests again on a healthy area. Make sure to lubricate the seal lip with a little grease or oil before mounting it so it does not run dry.

A frequent mistake is mounting the old seal on the new sleeve and expecting it to seal well. The lip has already taken the shape of the worn shaft and will not adapt to the sleeve. Whenever you install a Speedi-Sleeve, put a new seal. If you do not know which one goes, consult us with the shaft measurement and seal type.

The most common mistake is not measuring the shaft well and choosing a sleeve that does not correspond. If it is loose, it can shift and not seal; if it is too tight, it deforms or gets stuck during mounting. Another mistake is hitting the sleeve directly without using the tool, which damages the edge and complicates installation.

Lack of prior cleaning is also very common: dirt or burrs prevent the sleeve from seating well and cause it to be off-center. And do not forget to remove the flange if it interferes with the seal or other components. Leaving it on can cause rubbing or prevent correct mounting.

Finally, do not force the sleeve if it gets stuck halfway. Remove it, check the surface, and try again patiently. A poorly mounted sleeve is difficult to recover and you will have to replace it. If you have doubts during the process, write to us and we will guide you.
