How to Choose SKF Bearings by Application: Load, Speed, Environment, and Mounting

Choosing the right SKF bearing for a machine is not just a matter of size. Four main factors must be evaluated: load (magnitude and direction), rotational speed, working environment (temperature, humidity, contamination), and mounting (ease of installation, need for self-alignment).

Each bearing type is designed to withstand certain conditions. For example, deep groove ball bearings are versatile and support moderate radial and axial loads, while cylindrical roller bearings handle heavy radial loads. Properly analyzing the application prevents premature failures and plant downtime.

At MR Accesorios Industriales we distribute SKF and help you identify the correct code. If you have the old part, with a photo or the engraved number we can quote the exact replacement.

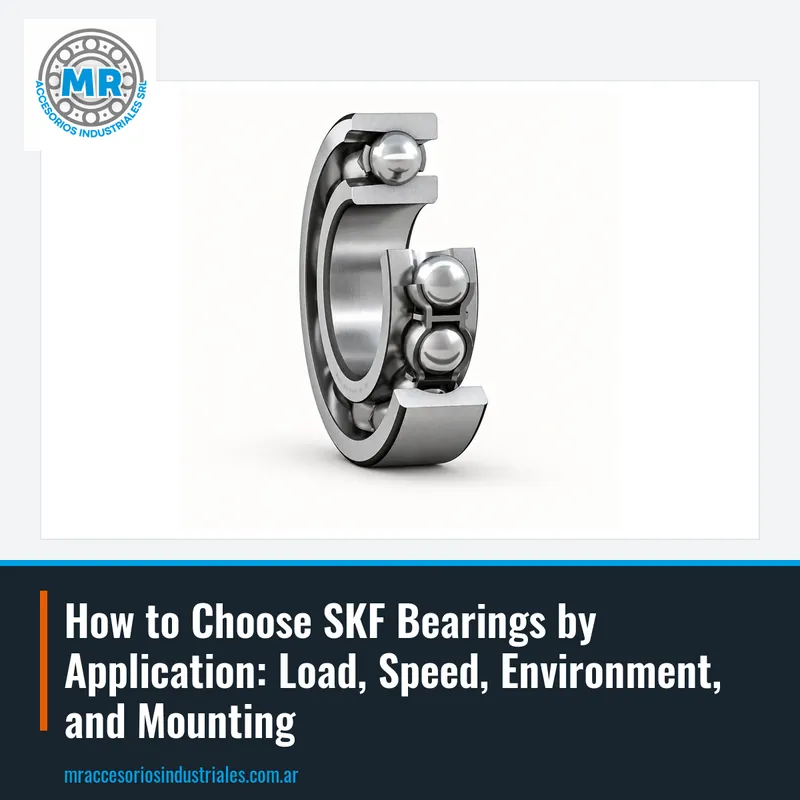

Deep groove ball bearings are the most widely used in industry due to their versatility. They support radial and axial loads in both directions, perform well at high speeds, and require little maintenance. They are ideal for electric motors, pumps, fans, and gearboxes.

Within this category, SKF offers a wide range of sizes and variants. For example, code 6010 corresponds to a general-purpose deep groove ball bearing, while 6008 is more compact. For applications with larger shaft diameters, 6026 can be used.

When choosing a deep groove ball bearing, consider whether you need seals or shields. The suffix 2RS indicates rubber seals on both sides (protects against contaminants and retains grease), and 2Z indicates metal shields on both sides (for cleaner environments). If the application involves high temperatures, it may require greater internal clearance, such as the C3 suffix.

When radial load is very high, cylindrical roller bearings are the best option. They support much more than ball bearings of the same size because the contact between rollers and raceways is linear rather than point contact. They are used in large motors, gearboxes, machine tools, and rolling mills.

SKF offers several series and configurations. For example, code N3055 is a cylindrical roller bearing with a cage, while RNU 305 and RNU 306 are bearings without an inner ring: the shaft acts as the raceway. It is important to verify the complete designation to ensure correct fit.

Generally, they do not take axial load (except some designs with flanges on both rings, which allow light axial load), so they are often combined with other types. At MR we advise you on the right configuration for your equipment.

In applications where the shaft may flex or misalign, spherical roller bearings are the solution. They have two rows of rollers and a spherical outer ring, allowing them to self-align and compensate for misalignment of up to a few degrees. They are robust and support high radial loads and moderate axial loads.

They are used in industrial fans, conveyors, mining equipment, and heavy machinery. Examples of SKF codes in this category: 22325, 22361, and 23666. The 223 series is one of the most used in heavy equipment.

When choosing a spherical roller bearing, consider whether the bore is cylindrical or tapered. The suffix K indicates a tapered bore, which is mounted on an adapter sleeve and facilitates installation on long shafts.

Angular contact bearings are designed to support simultaneous radial and axial loads, with higher axial capacity than deep groove ball bearings. The contact angle between raceways and balls determines the capacity: the larger the angle, the higher the axial load it can support.

They are used in pumps, compressors, machine tool spindles, and gearboxes. SKF has a wide range, for example codes 7417, 7453, and 7829. Many are mounted in pairs, in face-to-face or back-to-back arrangement, to support loads in both directions.

When selecting an angular contact bearing, it is key to define the contact angle (15°, 25°, or 40°) and the mounting arrangement. At MR we help you interpret the complete designation so you order the correct bearing.

Y-bearings, also called inserts, are a practical option for applications requiring simple mounting and a self-aligning housing. They come with a spherical outer ring that fits into a pillow block or flanged housing, allowing initial misalignment to be compensated.

They are used in agricultural machinery, conveyors, fans, and processing equipment. Examples of SKF codes: UC 216, UC 315, and UC 212. The UC series is the most common, with a cylindrical bore and set screw locking.

When choosing a Y-bearing, consider the housing type (pillow block, flange, take-up) and the shaft locking system. At MR we distribute SKF Y-bearings and their housings, and we quote the complete assembly.

To get a quote for an SKF bearing, the most practical is to have the exact code engraved on the part or on the equipment plate. If you don't have it, you can send us the measurements (inner diameter, outer diameter, and width) or a photo of the old bearing. With that we identify the correct replacement.

At MR Accesorios Industriales we distribute SKF bearings of all types: deep groove ball, cylindrical roller, spherical roller, angular contact, Y-bearings, tapered, needle, and rod ends. If the code is not in our search engine, send it anyway and we will quote it.

Write to us via WhatsApp or email with the code, measurement, or photo of the part, and we will respond promptly with the quote. We are in Buenos Aires, Argentina.
