How to Choose Timken by Application: Load, Speed, Environment, and Mounting

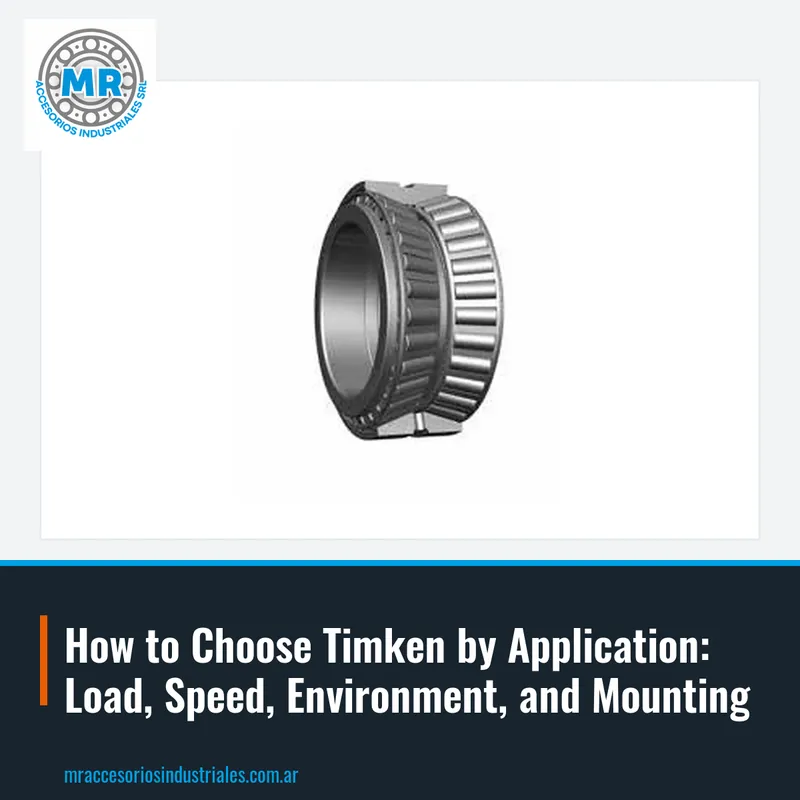

Timken tapered roller bearings are designed to withstand combined radial and axial loads. Their internal geometry allows the rollers and raceways to form a cone, which distributes the load efficiently. They are ideal for applications where forces act in more than one direction, such as in gearboxes or vehicle wheels. In the Timken catalog, these bearings appear with codes such as 384D, T105, and T402.

In Argentine industry, Timken tapered rollers are used in mining, agricultural, and heavy transport equipment. For example, in truck axles, agricultural machinery transmissions, and conveyor belt reducers. The ability to adjust internal clearance during mounting is a key advantage. This allows the bearing to be adapted to the specific load and temperature conditions of each machine.

When ordering a Timken tapered roller bearing, it is best to have the exact code engraved on the part, such as T105. If it is not legible, the inner diameter, outer diameter, and total width can be measured. A photo of the part also helps confirm whether it is a cone, cup, or complete assembly. At MR, we quote the code you need or help you identify it from the measurements.

Timken spherical roller bearings have two rows of rollers and a spherical raceway on the outer ring. This construction allows them to absorb angular misalignment of the shaft without losing load capacity. They are widely used in applications where the structure may flex or where mounting does not guarantee perfect alignment. Codes such as 22313EJ, 22214EJ, and 22310EM belong to this category.

In industrial plants, these bearings appear in fans, pumps, mills, and process equipment. They support high radial loads and moderate axial loads in both directions. The permissible misalignment depends on the internal design, but in general it is greater than in other types of bearings. Therefore, they are chosen when the shaft is expected to operate with some flexure or when mounting is complex.

To quote a Timken spherical roller bearing, the engraved code is the most direct, for example 22313EJ. If it is not visible, the main dimensions can be taken and it can be checked whether the bore is cylindrical or tapered. The suffix K indicates a tapered bore, which is mounted on an adapter sleeve. At MR, we distribute Timken spherical roller bearings and indicate the compatible sleeve if your shaft requires it.

Timken deep groove ball bearings are the most common in industry due to their versatility and simplicity. They support moderate radial and axial loads and perform well at high speeds. They are manufactured in open versions, with metal shields (suffix 2Z), or with rubber seals (suffix 2RS). Codes 6301, 6202, and 6004 are typical examples of this line.

These bearings are used in electric motors, pumps, compressors, fans, and a wide variety of machine tools. The choice between seal or shield depends on the environment: rubber seals retain grease better and prevent the ingress of contaminants, while metal shields generate less friction. C3 internal clearance is recommended when there are temperature differences between the shaft and the housing.

When ordering a Timken deep groove ball bearing, the complete code includes the series number and suffixes, such as 6202 with 2RS seal. If the bearing is severely damaged, the inner diameter, outer diameter, and width can be measured to identify it. It is also advisable to know whether the application requires normal or C3 clearance. At MR, we sell Timken deep groove ball bearings and advise you on the appropriate variant for your equipment.

Timken angular contact bearings have offset raceways to support axial loads in one direction and radial loads. They are mounted in pairs or sets to absorb axial loads in both directions. They are common in machine tool spindles, centrifugal pumps, and gearboxes. Codes such as 7310 B, 7211 B, and 3311 A correspond to this category.

The contact angle defines the axial load capacity: larger angles support more axial load but less speed. In precision applications, matched pairs with preload are used to eliminate internal clearance. Mounting must respect the correct orientation of each bearing, as indicated by the manufacturer.

To quote a Timken angular contact bearing, the complete code is key, such as 7310 B, as engraved on the part. If the bearing is part of a pair, it is advisable to order both at the same time to maintain precision. It should also be reported whether the mounting is tandem, back-to-back, or face-to-face. At MR, we quote the Timken angular contact bearing you need and guide you on the correct arrangement.

Timken housings, also called plummer blocks, are the enclosures where the bearing is mounted. They facilitate mounting and alignment on transmission shafts, conveyor belts, and process equipment. Codes LSM55, MSM90, and MSM55 belong to this line.

These housings are chosen according to the type of bearing inside: ball, spherical roller, or tapered roller. Fixing to the shaft can be with set screws, tapered sleeve, or adapter. The housing can be pillow block, flange, or take-up. The choice depends on the available space and the mounting method on the machine.

When ordering a Timken housing, the most direct is the complete code, such as MSM90. If the code is not known, the shaft diameter and the distance between mounting holes can be measured. It is also advisable to know whether the housing operates in a horizontal or vertical position. At MR, we distribute Timken housings and help you select the correct model for your application.

Covers and accessories for Timken housings allow the plummer block to be adapted to special conditions. They include blind covers, covers with seals, lubrication systems, and locking rings. These components are ordered by the corresponding housing code, such as LSM55 or MSM90. The correct cover protects the bearing from contaminants and retains lubricant.

In environments with dust, moisture, or splashes, a cover with a seal is essential to prolong service life. Blind covers are used when the shaft end does not protrude from the housing. The choice of accessory depends on the type of housing and working conditions.

To quote a Timken cover or accessory, the most practical is to indicate the housing code, such as MSM55, and the type of cover needed. If the code is not known, a photo of the housing with the original cover can be sent. At MR, we quote Timken covers and accessories for your housing and indicate the compatible option.

Timken adapter and withdrawal sleeves are used to mount bearings with tapered bores on cylindrical shafts. The adapter sleeve is tightened with a nut to expand the inner ring and secure the bearing. The withdrawal sleeve allows the bearing to be removed without damaging it, using a hydraulic or mechanical system. These accessories are ordered by shaft diameter and bearing code.

In applications with heavy loads or vibrations, mounting with a tapered sleeve ensures firm fixing and facilitates disassembly. It is common in spherical roller bearings and pillow block housings. The correct sleeve must match the tapered bore of the bearing and the shaft diameter. Incorrect fit can cause slippage or premature damage.

When ordering a Timken sleeve, the code of the bearing with tapered bore (suffix K) and the shaft diameter must be indicated. If the bearing is not known, the tapered bore and shaft diameter can be measured. At MR, we sell Timken adapter and withdrawal sleeves and help you choose the right one for your mounting.
