Common INA bearing failures: how to recognize them in time and prevent them

Failures in INA bearings almost never appear suddenly: they are the result of a process that starts with a specific cause and progresses to visible deterioration. The most common causes are incorrect mounting, insufficient or inadequate lubrication, contamination by particles or moisture, and overload or misalignment. If not corrected in time, they lead to pitting, flaking, raceway scoring, or cage breakage.

A well-chosen and correctly installed bearing can last a very long time, but a small error in fit or cleanliness is enough to ruin it prematurely. Therefore, it is advisable to know the early symptoms: abnormal noise, vibration, increased temperature, or excessive play. Detecting the failure at this stage allows planning the replacement without unexpected downtime.

At MR we sell INA bearings and help you identify the cause of the failure so it does not recur. If you have a damaged bearing, send us photos and application data: we will advise you on the replacement and good mounting practices.

INA needle bearings, such as NAO9, are compact and support high radial loads, but they are sensitive to misalignment and lack of lubrication. A frequent failure is scoring of the raceways by hard particles entering the bearing, or premature wear of the needles due to degraded lubricant. Cage breakages are also seen when there is excessive vibration or sudden accelerations.

To prevent this, check that the shaft and housing are within the recommended tolerances and that the radial play is correct. Use the lubricant indicated for the speed and operating temperature, and renew it according to the maintenance plan. In contaminated applications, improve the seals or use a bearing with integrated protection.

If you need to replace a needle bearing, identify the complete code engraved on the ring or cage. For example, IR12 is an inner ring for needles, and NAO9 is a needle bearing. With that data we will quote the exact replacement.

INA Y-bearings, such as UC209 or UK217, are used in pillow block or flange housings and often fail due to misalignment between the shaft and housing, or incorrect fixing of the inner ring to the shaft. Another typical cause is the ingress of water or dust through defective seals, which generates corrosion and pitting on the raceways. Excessive tightening of the set screws can also deform the inner ring and cause vibration.

To prevent these failures, verify that the housing is well aligned and that the shaft has the correct diameter and tolerance. Tighten the fixing screws to the recommended torque and use an additional seal if the environment is aggressive. Periodically check the play and temperature of the bearing during operation.

At MR we distribute INA Y-bearings in versions with and without adapter sleeve, such as UC205 or UK217. If you have doubts about which one corresponds to your housing, send us the shaft and housing dimensions, or a photo of the current bearing.

INA cam rollers, such as KR35 or KR22, work in direct contact with cams, tracks, or guides, so they are exposed to impact loads and surface wear. The most common failures are flaking of the outer surface due to material fatigue, cage breakage due to overload, or loosening of the fixing stud. Failures due to inadequate lubrication are also seen, especially in high-speed applications.

To extend their service life, respect the maximum permissible load and check that the roller rotates freely without excessive play. Lubricate according to the manufacturer's instructions and check the stud tightening at each maintenance. If the roller shows impact marks or flaking, replace it before it damages the cam or track.

At MR we sell INA cam rollers in different diameters and configurations, such as KR40 for heavier applications. If the code is not legible, send us the stud dimensions, outer diameter, and width: we will help you identify it.

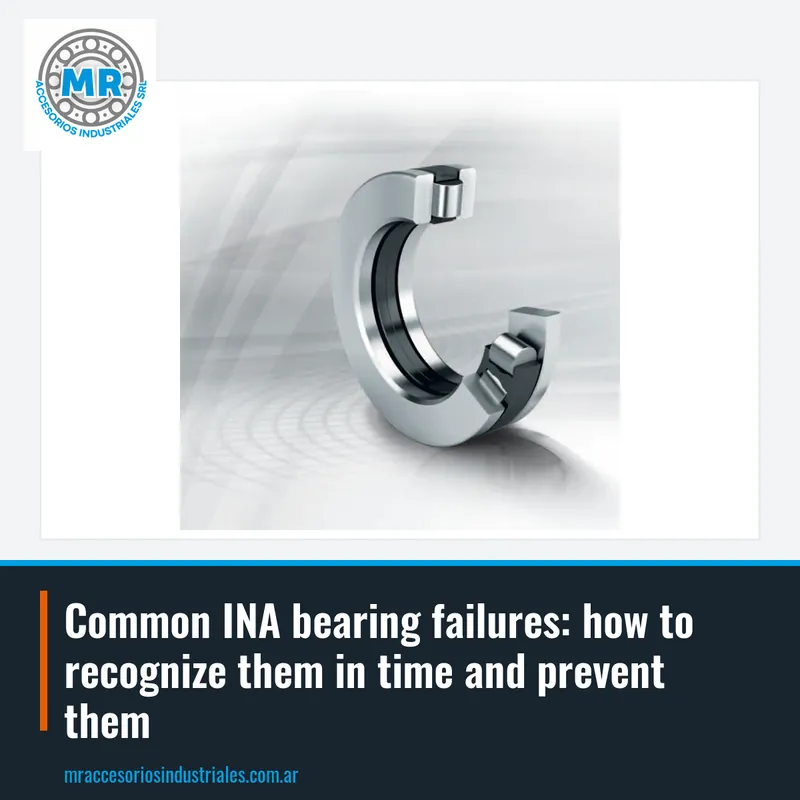

INA cylindrical roller thrust bearings, such as 81232-M, support high axial loads and are used in applications such as gearboxes, machine tool heads, or lifting systems. They fail mainly due to misalignment between the washers, insufficient lubrication, or contamination. Failures due to incorrect mounting are also observed, such as reversing the order of the washers or applying excessive preload.

To prevent this, verify that the support surfaces are flat and perpendicular to the shaft, and that the washers are correctly seated. Use the appropriate lubricant for the load and speed, and protect the bearing from particles with seals or labyrinths. Check the axial play periodically and adjust if necessary.

If you need to replace an INA thrust bearing, identify the complete code: for example, GS81214 is a housing washer for a thrust bearing of the 812 series. At MR we quote the complete bearing or the washers separately, according to your needs.

INA needle cages, such as K130 or K165, are components that guide and retain the needles in applications where a complete outer or inner ring is not used. They fail due to wear of the needles, cage breakage due to fatigue or lack of lubrication, and misalignment between the raceways. Failures due to forced mounting are also seen, which deforms the cage and causes jamming.

To prevent these problems, ensure that the raceways are hardened and ground, and that the cage fit is correct. Lubricate with suitable grease or oil and avoid impact loads. Check the condition of the needles at each maintenance: if they show pitting or uneven wear, replace the complete cage.

At MR we distribute INA cages and needle components in different sizes, such as K210 for larger diameters. If you do not know which cage corresponds to your application, send us the shaft and housing dimensions, or the code of the previous cage.

Most failures in INA bearings can be avoided with careful mounting and a simple maintenance plan. Before installing, clean the shaft and housing well, check tolerances and radii, and use appropriate tools to avoid hitting the bearing. Heat the bearing if the fit is interference, and never apply force on the rolling elements.

During operation, periodically check noise, vibration, and temperature. A sudden increase in temperature or intermittent metallic noise are warning signs. Lubricate according to the established schedule, using the correct lubricant and in the right amount: excess can also generate heat and damage.

If you detect an incipient failure, do not wait for forced downtime. Consult us at MR: we help you identify the correct INA bearing and give you mounting recommendations so the replacement lasts. Send us the code, dimensions, or a photo of the damaged part and we will quote you promptly.
