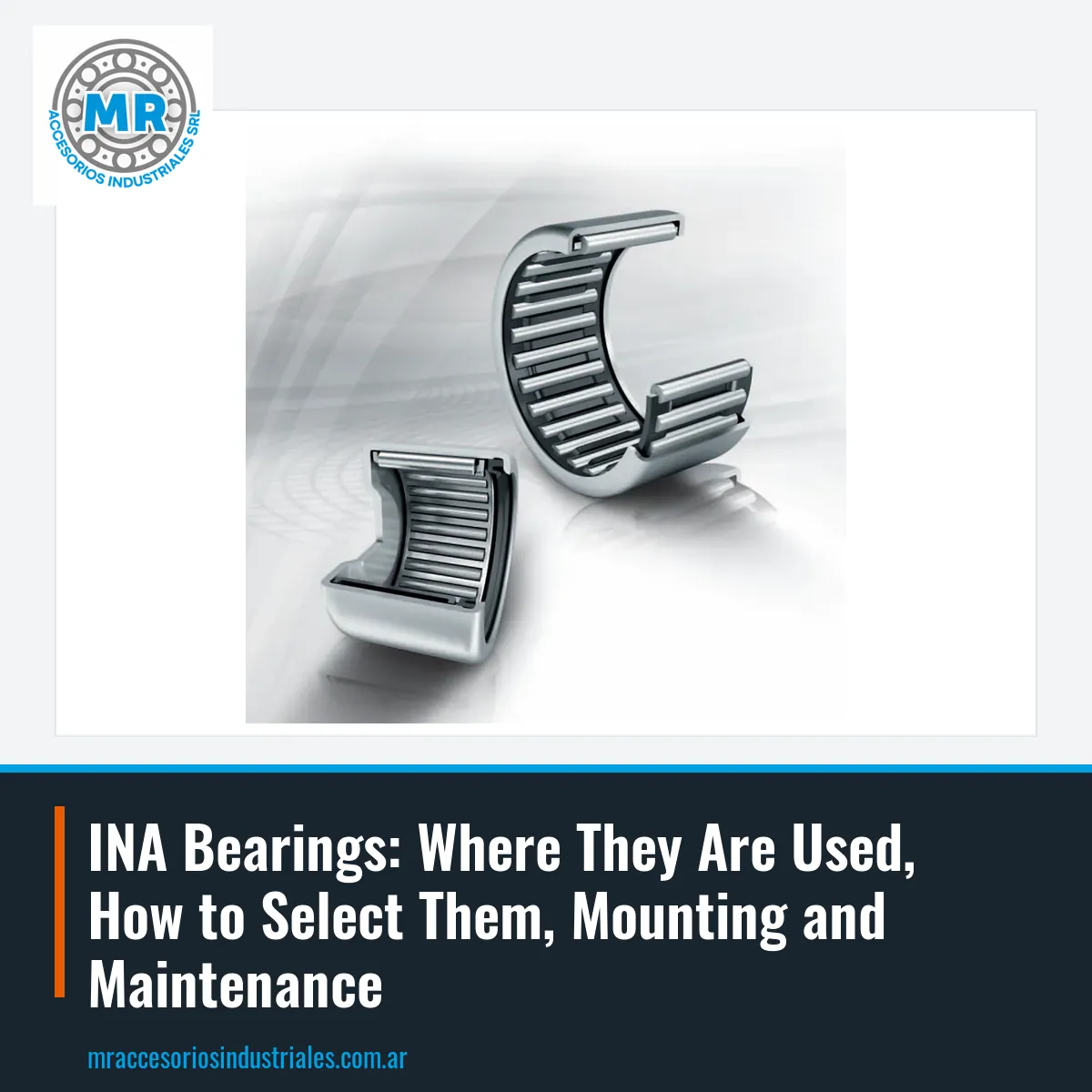

INA Bearings: Where They Are Used, How to Select Them, Mounting and Maintenance

INA is a brand recognized for its specialization in needle bearings, compact components that support high radial loads in reduced spaces. In Argentine industry, they are found in gearboxes, motors, pumps and transmission systems where the outer diameter must be minimal.

In addition to needle bearings, the line includes Y-bearings (inserts) with housing, ideal for agricultural machinery, conveyors and processing equipment. Also notable are cam followers and support rollers, used in cams, linear guides and feed mechanisms, and cylindrical roller thrust bearings for heavy axial loads.

The range is completed with cages and needle components, freewheels and special bearings for specific applications. Each type responds to a design need: high load capacity, rigidity, precision or ease of mounting.

In the automotive industry, INA needle bearings are used in gearboxes, alternators and water pumps. Their compact design allows reducing the weight and size of assemblies, something critical in the sector.

In agricultural machinery, Y-bearings with housing are very common in combine harvesters, seeders and tillage equipment. They withstand contamination from dust and residues, and their mounting with set screws facilitates replacement in the field.

In material handling equipment, such as conveyors and elevators, cam followers and support rollers guide and support loads under continuous working conditions. Cylindrical roller thrust bearings are used in cranes, presses and machine tools where there are strong axial thrusts.

The correct selection begins by defining the load (radial, axial or combined), the rotation speed and the available space. Needle bearings are ideal when radial space is limited, but they require a shaft with adequate hardness and grinding.

For axial loads, cylindrical roller thrust bearings offer high capacity and rigidity. If there is misalignment or frequent mounting, Y-bearings with housing are a practical option. Cam followers withstand shock loads and require a hardened guide or raceway.

Lubrication and sealing must also be considered. Many INA bearings come with seals or protective plates to retain lubricant and exclude contaminants. In dirty environments, an effective seal extends service life.

Incorrect mounting is one of the main causes of premature failure. For needle bearings, it is essential that the shaft has the hardness and roughness specified by the manufacturer. If the shaft is soft, the bearing will wear quickly.

In Y-bearings with housing, the fit to the shaft is usually with set screws or eccentric. You must verify that the housing is well aligned and that the load does not generate excessive vibrations. For cam followers, the raceway must be free of burrs and correctly hardened.

Always use appropriate tools: presses, mounting sleeves or induction heaters. Never strike directly on the rolling elements. Before mounting, clean the shaft and housing, and apply the recommended lubricant.

Maintenance of INA bearings is based on three pillars: lubrication, temperature and vibration control, and cleanliness. Lack of lubricant or use of an inadequate lubricant causes most failures.

Establish a re-lubrication program according to working hours and environmental conditions. In dusty or humid environments, use greases with anti-corrosion additives and check the seals. Monitor temperature with infrared thermometers: a sudden increase indicates problems.

Record interventions and operating conditions. If a bearing fails, analyze the cause: wear, fatigue, corrosion or defective mounting. This allows you to correct the problem at its root and avoid unscheduled downtime.

Below are some reference codes we supply. For example, in needle bearings: IR65, NAO9, IR12. In Y-bearings: UC209, UK217, UC205. In cam followers: KR35, KR22, KR40.

In cylindrical roller thrust bearings: 81232-M, GS81115, GS81214. In cages and needle components: K130, K165, K210. These codes correspond to specific dimensions and designs; if you can't find yours, ask us.

Remember that INA nomenclature includes prefixes and suffixes that indicate characteristics such as seals, cage or internal clearance. For example, a 2RS suffix indicates two rubber seals, and C3 indicates greater than normal radial clearance. Interpreting these codes is key to ordering the correct replacement.

If you need an INA bearing for your equipment, write to us via WhatsApp or email with the code, measurement or a photo of the part. We will quote the replacement and indicate the alternative if the original model is discontinued.

We work with INA bearings: needle, inserts, cam followers, thrust and components. We are in Buenos Aires, Argentina, and we serve inquiries from all over the country.

Do not hesitate to contact us for technical advice. Our team helps you select the right bearing according to the application and working conditions.
