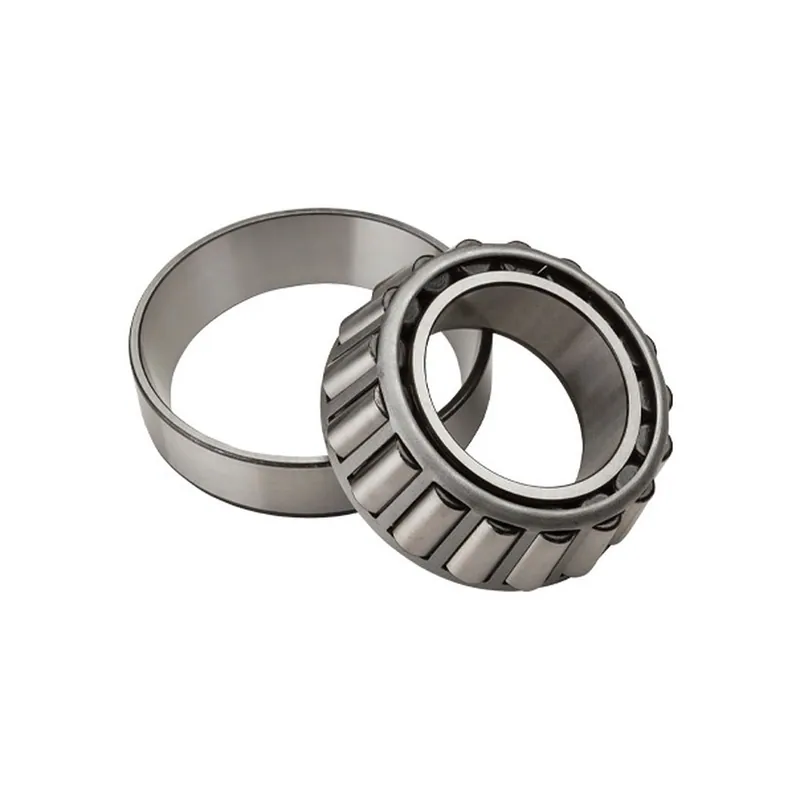

NTN 32924 tapered roller bearing
- Brand
- NTN
- Category
- Bearings
- Subcategory
- Tapered roller bearings
We respond promptly.
Since 1945 · Martínez, Buenos Aires, Argentina
Request your quote via WhatsApp or email, with the quantity you need.
Other brands in this category
Ask us about alternatives. Equivalence is verified for each reference and application.
SKF vs NTN: equivalent part numbers →FAG vs NTN: equivalent part numbers →NTN vs TIMKEN: equivalent part numbers →NTN vs RKB: equivalent part numbers →
Can't find the exact model? Write to us with the part number or model you're looking for: we'll find it and quote it, even if it's not listed in the catalog.
How to read NTN 32924
- 329Series
- Tapered roller bearings, 329 series. For the same bore, each series has a different outside diameter and width.
- 24Bore
- 120 mm bore: 24 × 5.
32924 is the standard (ISO) basic designation: it defines the type, the series and the bore.
Description
The NTN 32924 bearing has a 120 mm bore, a 165 mm outside diameter and a 29 mm total width (120 x 165 x 29 mm).
NTN 32924 is a reference of tapered roller bearing, within Bearings. Request a quote for 32924 via WhatsApp or email with the quantity you need; we respond promptly with the quote and equivalents.
NTN tapered roller bearings are components designed to support combined radial and axial loads. Their cone and cup geometry allows linear contact that distributes the load better. They are used in applications with significant forces and controlled misalignment, such as gearboxes, wheel axles and agricultural machinery. At MR Accesorios Industriales we handle them so you can request a quote for the part number or size you need.
The designation of this series is read from its basic number: the examples 32910, 32924, 32926, 32920 and 32938 share the 329 series, which identifies single-row tapered roller bearings. The prefix ○ that appears in some cases usually indicates an execution variant, such as a different finish or tolerance, depending on the manufacturer. To select the right one, send us the complete part number or the shaft and housing dimensions.
These bearings are used in industries in Argentina such as food, metallurgy, mining and agro-industry. They are present in gearboxes, pumps, fans, conveyors and earthmoving equipment. They are also found in the automotive and railway sectors. Their ability to support combined loads makes them suitable for shafts that transmit power and receive axial forces.
To choose well, take into account the type of sealing: open, with shields or with seals, depending on the working environment. Lubrication must be adequate and mounting requires precise alignment to avoid parasitic loads. Internal clearance and preload influence performance and service life. If the equipment works with vibrations or shocks, it is advisable to review the tolerance class. At MR we advise you so you can define the correct configuration.
If you need to replace a bearing from another brand, we can help you find the equivalent. What matters is that you send us the complete part number or the main dimensions: shaft diameter, outer diameter and width. With that data, we indicate the compatible alternative or handle the exact part you need. We work with the leading brands on the market and quote you promptly.
To move forward, send us the part number or size you are looking for via WhatsApp. At MR Accesorios Industriales we quote the NTN tapered roller bearing you need and support you in the selection. Write to us and we will reply promptly.
Dimensions
Boundary dimensions of the basic designation 32924 per ISO 355: 120 x 165 x 29 mm (d x D x T).
- Bore
- 120 mm
- Outside diameter (D)
- 165mm
- Total width (T)
- 29mm
Same size in SKF and other brands
Pages from other brands with the basic designation 32924: 120 x 165 x 29 mm (d x D x T) per ISO 355.
They share the boundary dimensions set by ISO 355, not the technical data: seals or shields, internal clearance, cage and load rating can differ by brand and suffix. We quote each one by its full part number.
Frequently Asked Questions
- What are the dimensions of the NTN 32924 bearing?
- The NTN 32924 bearing has a 120 mm bore, a 165 mm outside diameter and a 29 mm total width (120 x 165 x 29 mm). These are the standardised boundary dimensions (ISO 355) of the basic designation 32924.
- What does the 329 series mean in tapered roller bearings?
- The 329 series identifies single-row tapered roller bearings with standardized dimensions. The number that follows indicates the size. To interpret the complete part number, send us the model and we will help you identify the part.
- How do I know if a tapered roller bearing is compatible with my equipment?
- You need to compare the main dimensions: shaft diameter, outer diameter and width. Also the mounting type. If you send us that data or the original part number, we will indicate the equivalent or quote the exact part.
- What lubrication do you recommend for tapered roller bearings?
- It depends on speed, temperature and environment. It can be grease or oil. It is key to use a suitable lubricant and maintain cleanliness. If you have doubts, ask us and we will guide you according to your application.
