McGill by industry: where it's used, how to select it, assembly and maintenance for lasting performance

McGill bearings are recognized for their robustness and precision in demanding applications. Unlike standard bearings, many models incorporate needle rollers or special profiles that support combined radial and axial loads, even in tight spaces.

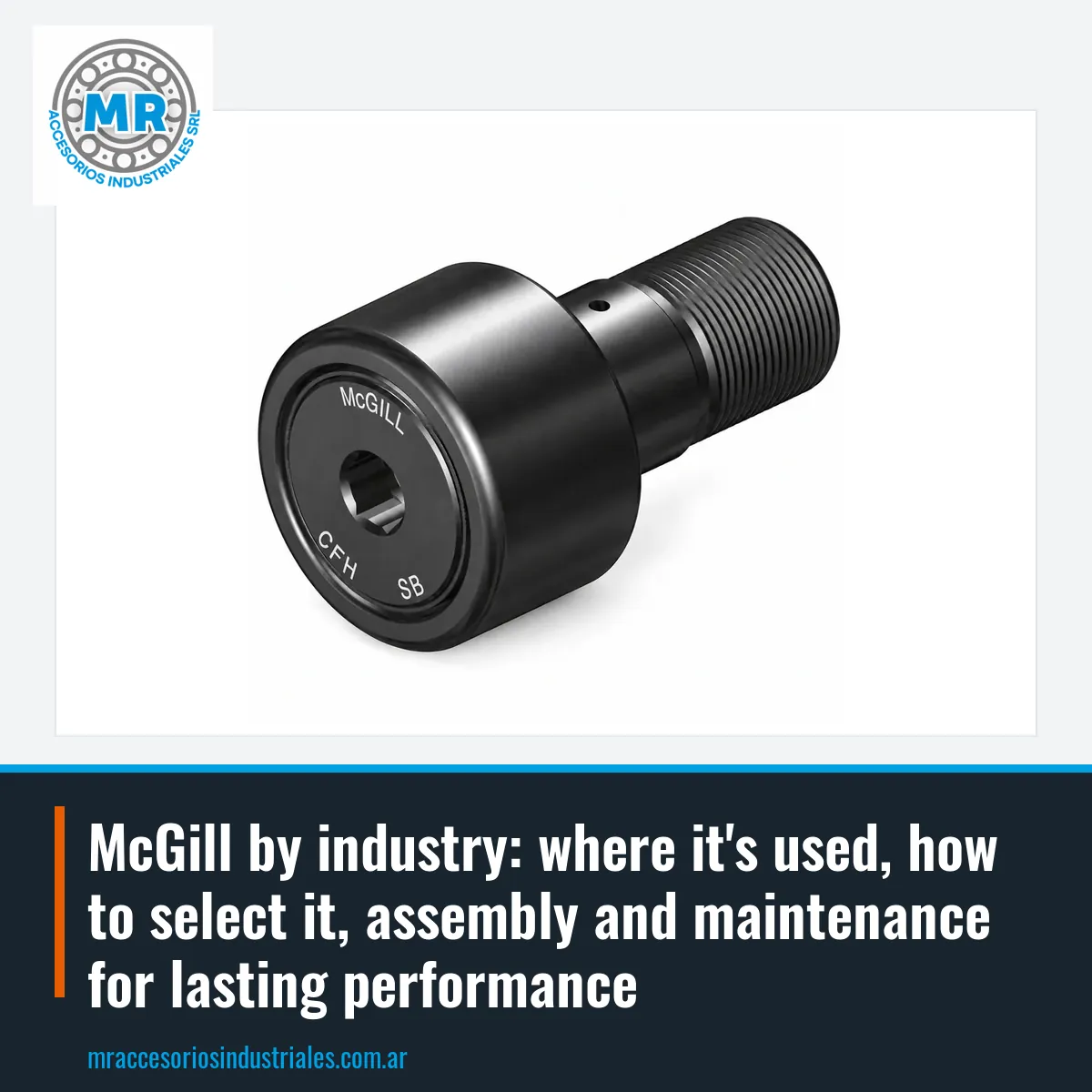

Within the line, cam and support rollers (such as the CF) are ideal for guiding linear or rotary movements with high load. Needle bearings (RS series) offer high capacity in compact diameters, and spherical roller bearings (SB series) compensate for misalignments.

At MR Accesorios Industriales we stock over 2,200 McGill references, from cam rollers to special bearings. If you need a particular model, we'll quote it just by providing the code or measurements.

McGill is present in industries where reliability is critical. In agricultural machinery, cam and support rollers are used in seeding, harvesting, and grain transport systems, withstanding dust and vibrations.

In automation and robotics, cam rollers guide cams and followers on assembly lines, while needle bearings are used in compact transmission shafts. McGill's precision reduces play and improves repeatability.

Other applications include machine tools, packaging equipment, textile industry, and material handling systems. In each case, the correct bearing selection directly impacts productivity and maintenance cost.

To choose the correct model, first define the loads (radial, axial, or combined), the speed, and the environmental conditions (temperature, humidity, contamination). Then, consider the available space and the need to compensate for misalignments.

Cam rollers are selected by outer diameter, width, and mounting type (with stud, with through shaft, etc.). Needle bearings are chosen by inner diameter, outer diameter, and width, and may include seals or special cages.

If you have doubts, at MR we help you interpret McGill nomenclature. For example, a CF 3 indicates a cam roller with a 3-inch outer diameter, while an RS 7 is a needle bearing with a 7/8-inch inner diameter. Send us your application and we'll indicate the appropriate alternative.

Improper assembly is a frequent cause of bearing failures. In cam rollers, verify that the stud or shaft is well aligned and that the locknut or retaining circlip is correctly tightened, without deforming the outer ring.

For needle bearings, use assembly tools that apply pressure only on the ring that is fitted (inner or outer). Avoid direct blows and check that the shaft or housing has no burrs or excessive wear.

In spherical roller bearings, respect the recommended tightening torque and verify that the spherical element can move freely. Forced misalignment can generate point loads and drastically reduce service life.

Lubrication is key to prolonging the life of McGill bearings. Many models come pre-lubricated from the factory, but in environments with high temperature or contamination, periodic relubrication with compatible grease is necessary.

Establish an inspection program that includes checking play, noise, temperature, and presence of lubricant leaks. An increase in vibration or temperature may indicate incipient wear or lack of lubrication.

In critical applications, consider using additional seals or protectors to prevent particle ingress. McGill offers variants with seals and shields that improve lubricant retention and protection against contaminants.

Bearings should be replaced when they show signs of fatigue such as flaking, pitting, or cracks on races or rolling elements. Also if there is excessive play, abnormal noise, or temperature increase without apparent cause.

In cam rollers, check the wear of the outer diameter: if the contact surface is marked or deformed, it can damage the cam or rail. In needle bearings, check the condition of the needles and cage.

Don't wait for total failure: a damaged bearing can cause greater damage to the equipment. If you notice any of these symptoms, consult us with the McGill code or measurements and we'll quote the replacement promptly.

McGill offers a wide range of special bearings that solve problems where standard bearings fall short. Its robust design and material quality ensure reliable performance even in adverse conditions.

At MR Accesorios Industriales we work with McGill: cam and support rollers, needle bearings, spherical roller bearings, and special bearings. We stock over 2,200 references to cover different needs.

If you are in Buenos Aires, Argentina, or anywhere in the country, we'll quote the McGill bearing you need. Send us the code, measurement, or a photo of the part via WhatsApp or email and we'll respond promptly.
