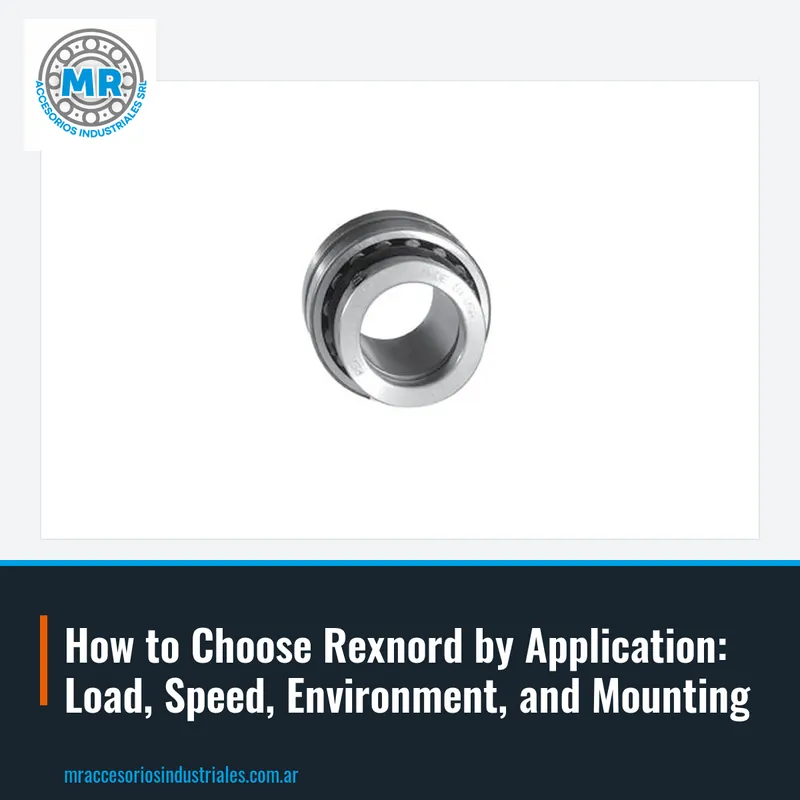

How to Choose Rexnord by Application: Load, Speed, Environment, and Mounting

Rexnord spherical roller bearings are designed to support combined radial and axial loads, with self-aligning capability. The spherical raceway of the outer ring compensates for shaft misalignment or structural deformations without generating additional stresses. They are a common choice in equipment where mounting is not perfectly aligned or where the base may move under load.

In Argentine industry, they appear in belt conveyors, bucket elevators, industrial fans, pumps, and construction machinery. They are also used in mining and quarry equipment, where loads are heavy and alignment conditions are not always ideal. Their ability to absorb misalignment reduces the risk of premature failures due to imperfect mounting. Therefore, they are preferred in applications where maintenance cannot be frequent.

To identify a Rexnord spherical roller bearing, look at the engraving on the side face of the ring. There you will find the complete code, for example 2315U, 9200U, or 5303U. In addition to the code, it is useful to measure the inner diameter, outer diameter, and width, because sometimes the part is very worn and the engraving is not legible. When requesting a quote, send the code and measurements: this way we avoid confusion with similar series. If the part is very worn, a photo also helps.

The Y-bearing, also called insert, is a rigid ball bearing with a spherical outer ring that is mounted inside a housing. The spherical shape of the outer ring allows it to self-align within the housing, compensating for small mounting errors. It is fixed to the shaft with set screws, eccentric locking collar, or adapter sleeve, depending on the model. It is a practical solution for transmission shafts that need simple and easily replaceable support.

These bearings are used in agricultural machinery, conveyors, fans, mixers, and food processing equipment. In Argentina, they are very common in grain storage plants and packaging lines, where quick mounting and simple maintenance are desired. Since they are mounted in a housing, they are replaced as a unit or just the insert, depending on wear. The choice of fixing system depends on the speed and axial load that the shaft must support.

To quote a Rexnord Y-bearing, the code engraved on the ring is the main data. For example, 3107U, 3315U, or 3207U identify specific models. It is also advisable to indicate the shaft diameter and the type of housing where it is mounted, because sometimes the insert is requested together with the housing. A common mistake is to order only by shaft size without verifying the code, which can lead to an insert with a different fixing system. Send us a photo of the part and the code, and we will quote it.

Rexnord housings are the parts where bearings are mounted to secure them to the machine structure. They can be pillow block, flange, take-up, or cartridge types. Their function is to support the bearing and transmit loads to the frame. The choice of housing depends on the bearing type, available space, and mounting method.

In Argentine industry, they are found in conveyor belts, screw conveyors, pumps, agitators, and machine tools. A poorly chosen housing can cause vibrations, misalignment, and premature bearing failures. Therefore, it is important to verify the distance between the centers of the mounting holes and the housing diameter. Pillow block housings are the most common, but in applications with limited space, flange or take-up housings are used.

The code of the Rexnord housing is usually engraved on the body or cover. For example, ZA6107, ZA6206, or ZB2308 correspond to different sizes and designs. In addition to the code, it is useful to measure the distance between mounting holes and the housing diameter to confirm compatibility. A common mistake is to order a housing without verifying whether it is for a bearing with a cylindrical or tapered bore. Send the code and measurements, and we will quote it.

The Y-housing with insert bearing is a ready-to-mount unit: it includes the housing and the insert bearing already assembled. This combination simplifies mounting because there is no need to align the bearing inside the housing: the spherical outer ring of the insert self-aligns. It is fixed to the shaft with set screws or eccentric locking collar, and the housing is bolted to the structure. It is a widely used solution in agricultural machinery and conveying equipment.

These units are used in grain conveyors, sorting belts, sand washers, mixers, and packaging equipment. The advantage is that they are replaced quickly: the entire unit is removed and a new one is installed, without the need to adjust alignment. In Argentina, they are very common in grain storage plants and production lines where downtime is critical. The choice of size depends on the shaft diameter and radial load.

To quote a Rexnord Y-housing with insert bearing, the unit code is the most practical. For example, P4B-203-T, P2B-208-T, or P2B-307-T identify specific configurations. The housing and insert can also be ordered separately, but it is advisable to verify that they are compatible. A common mistake is to confuse the housing number with the insert number, because sometimes they are different series. Send us the complete code or a photo of the unit, and we will quote it.

Rexnord friction bushings are cylindrical sleeves that are mounted in the housing to reduce wear between the shaft and the part. Their function is to support radial loads and allow smooth sliding movement, without the need for rolling. They are used when speeds are low and loads are high, or when the environment does not allow grease lubrication.

In Argentine industry, they appear in agricultural machinery hinges, pump shafts, suspension systems, and mining equipment. They are also used in applications where space is limited and a ball or roller bearing does not fit. The choice of material depends on load, speed, and the presence of contaminants. A poorly chosen bushing can wear quickly or damage the shaft, so it is advisable to verify exact measurements.

To order a Rexnord bushing, the code is the safest data. For example, 701-66008-040, 701-66024-096, or 701-66004-024 identify different models. In addition to the code, it is essential to measure the inner diameter, outer diameter, and length, because sometimes the code is not legible due to wear. A common mistake is to order a bushing by shaft diameter without considering the housing. Send the code or measurements, and we will quote it.

To choose the right Rexnord bearing, first define the working conditions: radial and axial load, rotation speed, temperature, and presence of contaminants. With this data, the bearing type can be determined: spherical roller for combined loads and misalignment, Y-insert for simple mounting in a housing, or friction bushing for low speed and high load. The type of mounting also matters: on the shaft, in a pillow block, flange, or take-up housing.

Once the type is defined, the code engraved on the part is the safest way to identify it. Rexnord codes combine numbers and letters that indicate the series, size, and sometimes the design. If the code is not legible, the main measurements can be taken: inner diameter, outer diameter, and width, and with that, the equivalent is found.

When requesting a quote, it is advisable to send the complete code, measurements, and a photo of the part. It is also useful to indicate the machine where it is mounted and the working conditions, because that helps confirm that the chosen bearing is correct. A common mistake is to order only by shaft size without verifying the bearing type, which can lead to a part that does not support the load. With this data, we quote the Rexnord you need.

One of the most frequent mistakes is choosing a bearing by shaft size without considering load and speed. A rigid ball bearing may not support the radial load of a heavy conveyor, and a spherical roller bearing may be excessive for a light fan. Another mistake is not verifying the fixing system: an insert with set screws is not the same as one with an eccentric locking collar, and the mounting changes.

During mounting, a common mistake is forcing the bearing onto the shaft with direct blows, which damages the raceways and rolling elements. Mounting with controlled fit should be used and, if necessary, the bearing should be heated evenly. In the case of housings, tightening the fixing screws unevenly can misalign the unit and generate vibrations. It is always advisable to follow the manufacturer's recommendations for fit and lubrication.

To avoid these problems, when ordering a Rexnord, it is advisable to send all available data: code, measurements, photo, and application. This confirms that the chosen model is correct and that the mounting will be adequate. An identification error can cost a plant shutdown or greater equipment damage. If you have doubts, write to us via WhatsApp or email with the code or photo, and we will help you choose.
