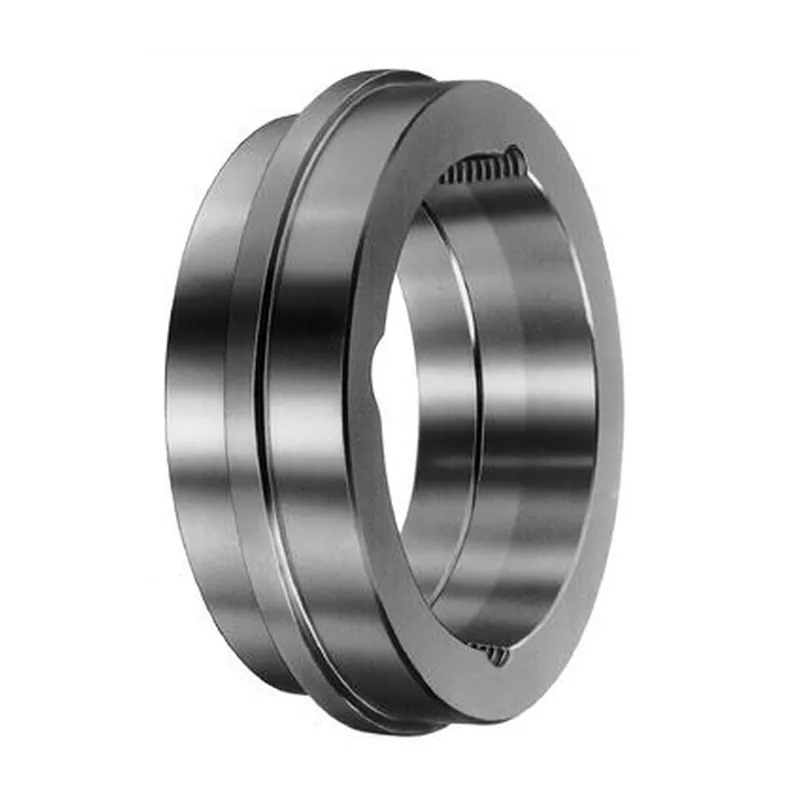

Hub DODGE 8F25C

DODGE 8F25C is a hub reference, within Power transmission. Request a quote for 8F25C via WhatsApp or email with the quantity you need; we respond promptly with lead time and equivalents.

The DODGE F series hub is the component that houses the taper bushing in power transmission systems, allowing the pulley or gear to be mounted on the shaft with a firm, removable fit. It is used in equipment where torque must be transmitted and, at the same time, the fastening element must be able to be adjusted or replaced without damaging the shaft. MR Accesorios Industriales supplies it in Buenos Aires, Argentina.

The F series designation is read in blocks: the first number indicates the hub size, the letter F identifies the family, the following number refers to the diameter or type of taper bushing it houses, and the final letter indicates the mounting variant. That is why it is best to read the full part number before ordering: 6F25C and 8F25C share the bushing and the variant, but differ in hub size. Send us the part number exactly as it appears on the part or in the drawing and we will cross-reference it with the size you need.

These hubs are found in belt and roller conveyors, bucket elevators, mixers, pumps and industrial fans. In food, cement, mining and aggregate processing plants in Argentina, they are commonly found in gearboxes and transmission shafts that work under variable load and require frequent maintenance. They also appear in material handling equipment where replacement is done at the machine and without dismantling the entire assembly.

To select correctly, take into account the bushing taper, shaft diameter, hub length and fastening system. Mounting requires cleaning the tapered surfaces, checking for burrs or dents, and tightening the screws evenly and progressively until the specified torque is reached. Lubricating the thread and the taper helps the fit to be uniform and prevents subsequent disassembly from becoming difficult.

Regarding interchangeability, hubs and taper bushings cross between manufacturers by catalog number and by taper and shaft dimensions, not by brand. A hub from another source often replaces the original if the taper, diameter and screw pitch match. If in doubt, send us the shaft and bushing dimensions, or the part number of the old part, and we will indicate the compatible alternative.

If you need to replace a DODGE F series hub or assemble the unit with its taper bushing, write to us on WhatsApp with the part number or shaft dimensions. At MR Accesorios Industriales we will quote the reference and advise you on mounting so that the transmission stays aligned and runs without play.

This description provides guidance on the product type. Check the configuration and dimensions of this reference.
