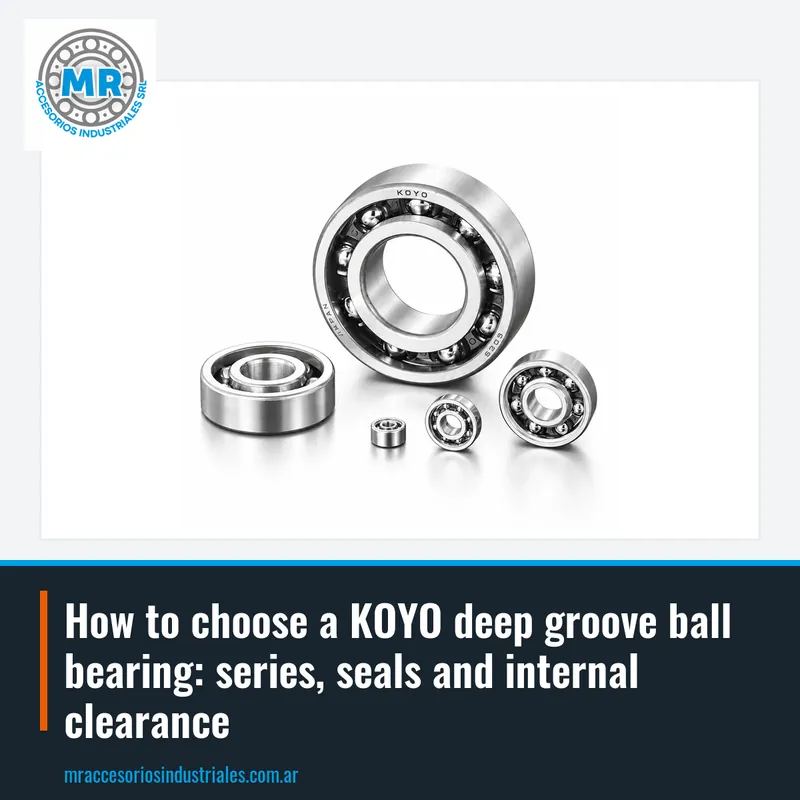

How to choose a KOYO deep groove ball bearing: series, seals and internal clearance

KOYO is a bearing brand that we supply in Argentina, with a focus on the deep groove ball bearing line. These bearings have a single row of balls, with deep and continuous raceways on the inner and outer rings. They support radial loads and also moderate axial loads in both directions. They are the most common type in industry due to their versatility and low maintenance.

The KOYO deep groove ball bearing is used in electric motors, pumps, fans, compressors and a wide variety of industrial machinery. In Argentina it is frequently found in production equipment, packaging lines and transmission systems. Its design allows high rotation speeds with low friction. That is why it is a standard option for replacements and new projects.

To identify a KOYO deep groove ball bearing, check the engraving on the side face of the ring. There you will find the code, such as 6210, 6012 or 6901, along with the KOYO brand. If the part is very worn, you can measure inner diameter, outer diameter and width. With that data we help you find the equivalent bearing.

KOYO deep groove ball bearings appear in equipment where shaft support with smooth and precise rotation is needed. In electric motors, for example, they go at both ends of the rotor to maintain alignment. In centrifugal pumps, they support the impeller shaft and absorb small axial loads. They are also used in gearboxes, although there they are usually combined with other types of bearings.

In the food and pharmaceutical industry, KOYO deep groove ball bearings are mounted in conveyors, mixers and dosing equipment. Their sealed or metal-shielded construction prevents the entry of contaminants. In machine tools, these bearings contribute to the precision of auxiliary spindles and feed systems. The key is to choose the right internal clearance and seal for each application.

To know which KOYO bearing corresponds to your equipment, first look at the code engraved on the old bearing. If it cannot be read, measure the dimensions and consult us. It also helps to know the original brand and the machine model. With that information we quote the KOYO deep groove ball bearing you need.

Each KOYO bearing has an alphanumeric code that indicates the series and size. For example, 6210 belongs to the 62 series, with an inner diameter of 50 mm, an outer diameter of 90 mm and a width of 20 mm. The code 6012 is from the 60 series, with an inner diameter of 60 mm, an outer diameter of 95 mm and a width of 18 mm. The 6901 is from the 69 series, thinner, with an inner diameter of 12 mm, an outer diameter of 24 mm and a width of 6 mm.

In addition to the base code, KOYO bearings may have suffixes that indicate special characteristics. The most common are 2RS, which means rubber seal on both sides, and 2Z, which indicates metal shields on both sides. The C3 suffix indicates a greater internal clearance than normal, useful when there is thermal expansion.

When requesting a quote, send the complete code exactly as engraved, including suffixes. If you do not have the code, send the exact measurements in millimeters and a photo of the part. This way we avoid confusion between similar series. You can also indicate the original brand if the bearing is not KOYO, to look for the equivalence.

Within KOYO deep groove ball bearings, the most used series in Argentine industry are 60, 62 and 69. For the same inner diameter, the 60 series has a lighter section than the 62. The 62 series is more robust, for higher loads. The 69 series is thin, ideal for reduced spaces and high-speed applications.

The example codes we mentioned earlier show that variety. The 6210 is a medium-sized bearing, common in motors and pumps. The 6012 is larger, for 60 mm shafts, frequent in agricultural and industrial machinery. The 6901 is small and thin, typical of power tools and small mechanisms.

If your bearing has another code, consult us with that code or with the measurements. We supply KOYO in Buenos Aires, Argentina, and we indicate the corresponding bearing. You do not need to know the exact series: the part data is enough.

KOYO deep groove ball bearings can come open, with rubber seals (2RS) or with metal shields (2Z). Open ones are used when there is external lubrication or oil bath. Sealed 2RS retain grease and prevent the entry of dust and moisture. They are the most common option in equipment with simple maintenance.

Bearings with 2Z metal shields offer protection against coarse particles, but they do not seal hermetically. They are used in clean environments and at high speeds, because they generate less friction than rubber seals. The choice between 2RS and 2Z depends on the working environment and the type of lubrication.

When quoting, it is important to clarify whether you need the open, 2RS or 2Z bearing. If the engraved code includes that suffix, copy it exactly. If it does not include it, indicate whether the old bearing had a seal or shield. That allows us to offer you the exact KOYO for your application.

The internal clearance of a bearing is the play between the balls and the raceways. The C3 suffix indicates a greater clearance than normal. C3 is used when the bearing works at high temperatures or with interference fits. In those cases, the extra clearance prevents the bearing from seizing due to expansion.

The tapered bore, identified with the K suffix, allows the bearing to be mounted on an adapter sleeve or directly on a tapered shaft. It is common in applications with heavy loads or long shafts, such as in agricultural machinery or conveyors. Mounting is done by adjusting the sleeve against the tapered bore.

If your KOYO bearing has a C3 or K suffix, do not replace it with a standard one without verifying. An incorrect internal clearance can cause noise, vibration or premature failure. Send us the complete code and we quote the bearing with the correct specification.

To quote a KOYO bearing, send via WhatsApp or email the code engraved on the part, for example 6210, 6012 or 6901. If the code cannot be read, send the measurements in millimeters: inner diameter, outer diameter and width. A photo of the bearing and the equipment where it is mounted also helps.

We supply the KOYO brand in Buenos Aires, Argentina, and we work with genuine product. With the data you provide, we quote you promptly. If you have a bearing from another brand and want a KOYO equivalent, indicate the original code and we look for it.

Avoid requesting only by size without verifying the type of seal or internal clearance. An open 6210 bearing is not the same as a 6210 2RS C3. The more information you give us, the faster we respond with the correct option. Write to us and we coordinate your order.
