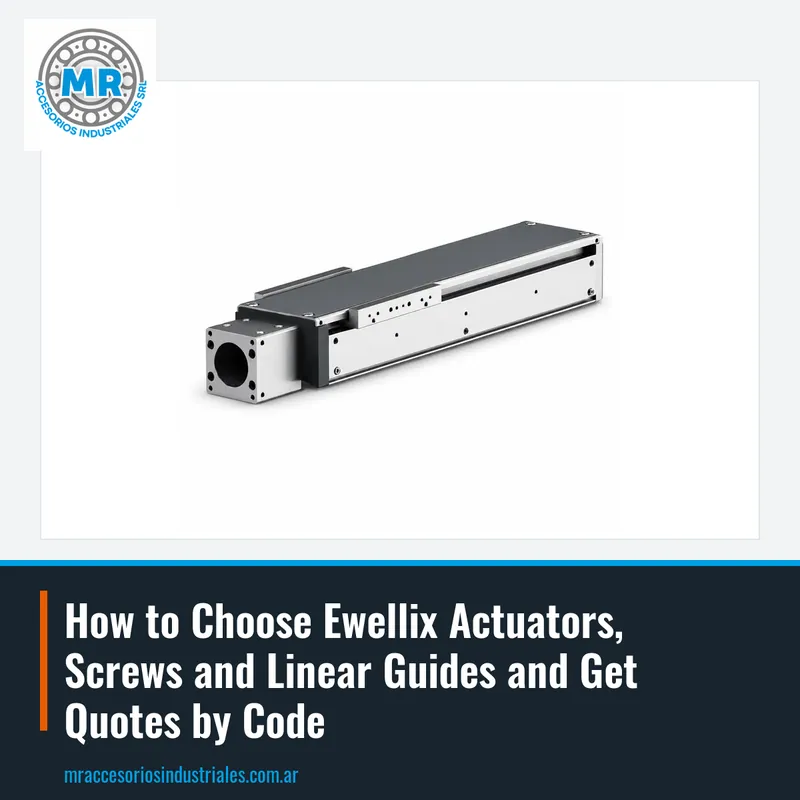

How to Choose Ewellix Actuators, Screws and Linear Guides and Get Quotes by Code

Ewellix is a brand focused on linear motion solutions for industrial and mobile applications. Its catalog includes linear actuators, screws, guides and other components that convert rotary motion into linear displacement. In Argentina, MR distributes these products for maintenance and new projects.

Ewellix's main lines include electromechanical actuators, ball and roller screws, linear guides and telescopic columns. Each has design features tailored to different loads, precisions and work environments. Knowing the difference helps choose the right component.

For a quote, the most practical is to have the Ewellix code of the part, such as CLSM-92-B05 or CLSM-92-T03. If the code is not available, you can send a photo and main measurements. With that data we will provide a quote shortly.

Ewellix linear actuators convert motor rotation into controlled linear motion. They are used in automation equipment, agricultural machinery, medical devices and applications requiring pushing, lifting or precise positioning. The brand offers versions with different screw types and load capacities.

In Argentine industry, they appear in assembly lines, adjustable work tables and opening or adjustment systems. Their compact design allows integration into tight spaces.

When ordering an actuator, specify stroke, desired speed and load to move. If the code is engraved on the nameplate, identification is direct. At MR we quote the spare part or complete actuator according to the reference you send.

Ewellix screws are transmission elements that transform rotation into linear displacement with high efficiency. Ball screws use ball recirculation to reduce friction, while roller screws withstand higher loads. They are manufactured in different leads, diameters and lengths.

These components are used in machining centers, presses, positioning systems and precision machinery. The choice between ball or roller screw depends on axial load, speed and required rigidity. A poorly selected screw can wear prematurely or lose precision. Also important are the nut type, end fixing method and whether the shaft works horizontally or vertically, as each condition changes the stresses on the assembly.

To quote an Ewellix screw, it is key to indicate nominal diameter, lead and threaded length. If the part has an engraved code, send it as is. At MR we work with the Ewellix line and help you identify the correct model from that data.

Ewellix linear guides allow linear displacements with low friction and high rigidity. They consist of rails and carriages with rolling elements, ensuring smooth and repeatable movement. They are used in machine tools, measuring equipment and automation.

In industrial applications, linear guides support loads in multiple directions and maintain precision over long cycles. Selection depends on rail length, carriage type and preload. Incorrect assembly can cause vibrations or uneven wear. Therefore, check base flatness, clean support surfaces and verify carriages move without hard spots before loading the machine.

When requesting an Ewellix guide, indicate rail width, distance between mounting holes and number of carriages. If you have the part code, processing is faster. At MR we quote Ewellix linear guides and advise on compatible options for your equipment.

Ewellix telescopic columns are multi-stage linear actuators that allow long strokes in a compact size. They are used in height-adjustable work tables, medical stretchers, ergonomic workstations and industrial equipment requiring vertical adjustment.

These columns combine aluminum or steel profiles with internal screws, offering stability and load capacity. The number of stages defines maximum stroke and retracted height. They are a practical alternative to hydraulic or pneumatic systems in low-speed applications. Since no hoses or compressor are needed, the equipment is cleaner and maintenance is reduced to periodic inspections of the assembly.

To quote an Ewellix telescopic column, stroke, load to support and mounting dimensions are needed. If the part has an engraved code, that data simplifies the search. At MR we distribute these products and provide a quote with the data you send.

Ewellix products usually have an alphanumeric code engraved that identifies the model and its characteristics. For example, CLSM-92-B05 and CLSM-92-T03 are two Ewellix linear motion references that differ only at the end of the code. That code is the most accurate way to order a spare part.

In addition to the code, record main measurements: stroke, diameter, screw lead, total length or connection type. In many cases, a photo of the identification plate or engraving is enough for MR's technical team to recognize the part. Avoid ordering by generic description alone, as there may be similar versions.

If the customer provides a code from another brand, an Ewellix equivalent can be sought. For that, dimensional and load specifications are needed. At MR we distribute the Ewellix line and help you find the right component from that data.

A frequent mistake is requesting an actuator or screw only by stroke length, without considering load or speed. This can lead to selecting an undersized model that fails prematurely. Always verify the complete specifications of the original equipment.

During installation, it is important to respect alignment tolerances and tightening torques specified by the manufacturer. A misaligned linear guide or a forced screw generates irregular wear and loss of precision. Also use adequate lubrication according to the rolling element type. Mixing incompatible greases or leaving the screw unprotected against dust and chips accelerates wear, so check bellows, wipers and seals at each scheduled stop.

When ordering spare parts, avoid sending only a blurry photo or an incomplete code. Ideally, combine the Ewellix code, measurements and a clear image. With that information, at MR we quote the correct product and advise on installation care.
