Frequent Sealmaster bearing failures: how to recognize and prevent them

Bearing failures rarely appear overnight. In most cases, they result from a process that combines improper mounting, poor lubrication, contamination, or material fatigue. In the case of Sealmaster bearings, which are widely used in agricultural and industrial applications, the working environment is often demanding: dust, moisture, vibrations, and variable loads.

A bearing can fail due to abrasive wear when foreign particles enter the interior, or due to surface fatigue when the load exceeds the material's capacity over time. There are also failures due to corrosion if moisture penetrates the seals, or due to overheating when lubrication is insufficient or the fit is excessive.

Recognizing the type of failure helps correct the cause and not just replace the part. If a bearing seizes, makes noise, or shows excessive play, it is advisable to check the mounting, the condition of the seals, and the lubrication plan. At MR we sell Sealmaster bearings and help you identify the correct replacement part for your application.

Sealmaster Y-bearings or inserts, such as codes MH-31, MH-19, or MH-23, are mounted in housings and used on drive shafts, screw conveyors, conveyor belts, and agricultural machinery. A frequent failure is the loosening of the inner ring on the shaft due to incorrect fit or wear of the seat. This generates vibration and premature wear.

Another common failure is seal deterioration, which allows contaminants to pass and causes abrasive failures. In dusty or wet environments, seals can harden or crack. Excessive radial play is also observed when the bearing operates under unbalanced load or the housing is not properly aligned.

To prevent these failures, verify that the inner ring fit is correct for the shaft, use the appropriate fastening elements, and periodically check the condition of the seals. If you need to replace a Sealmaster insert, you can request a quote via WhatsApp or email with the code engraved on the part or the shaft dimensions.

Sealmaster spherical roller bearings are chosen for applications with heavy loads and angular misalignment. A typical failure is raceway wear due to insufficient lubrication, which manifests as scratches or flaking on the raceways.

Seizing can also occur when the bearing overheats due to excessive load or lack of internal clearance. In such cases, the rollers and raceways microscopically weld and the bearing locks up. Another failure is cage breakage, which usually occurs due to strong vibrations or forced mounting with impacts.

To prevent them, respect the recommended internal clearance for the application, lubricate with the appropriate product and frequency, and mount the bearing without striking directly on the rollers. If you have doubts about which Sealmaster spherical roller bearing you need, at MR we quote the option based on the code or dimensions.

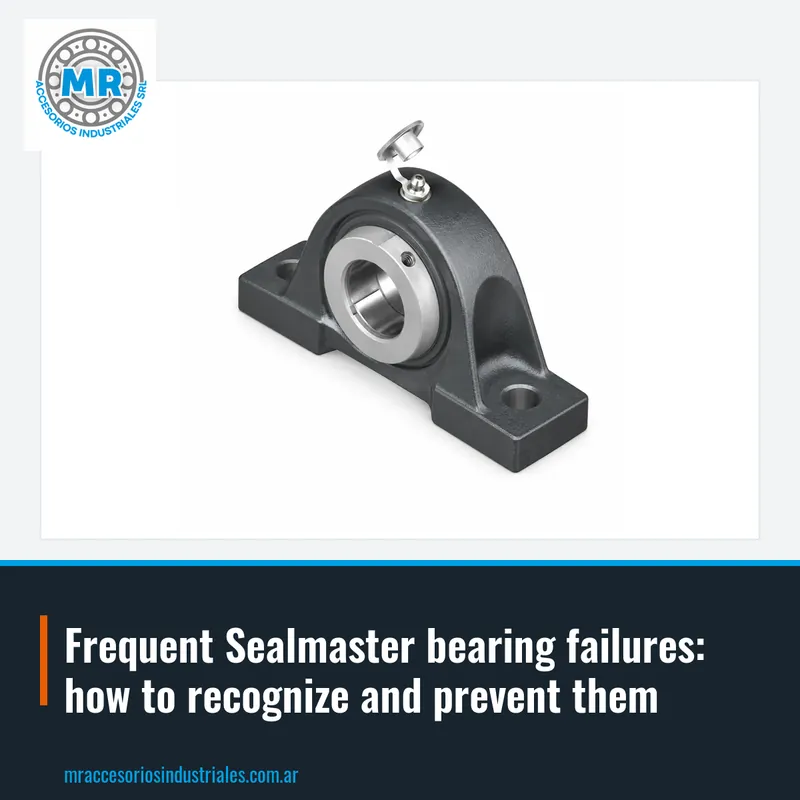

Sealmaster Y-housings with insert bearing, such as STMH-35, TBMH-27, or SFMH-24, combine the cast iron or sheet metal housing with the insert. A frequent failure is misalignment between housings, which generates additional loads and reduces bearing life. This is usually noticed by uneven heating or vibration.

Another common failure is the loosening of the housing mounting bolts to the structure, which allows relative movement and wear in the support area. Failures due to corrosion in sheet metal housings are also seen when the paint is damaged and the environment is humid or corrosive.

To prevent these problems, align the housings precisely during mounting, check bolt torque, and periodically inspect the condition of the support surface. If you need to replace a Sealmaster Y-housing with insert bearing, send us a photo of the part or the code and we will quote it.

Sealmaster housings are used to mount bearings in fixed or tensioner positions. A typical failure is base breakage due to fatigue when there are excessive vibrations or the housing is poorly secured. Wear in the bearing seat is also seen when the insert rotates within the housing.

In tensioner housings, wear of the adjustment mechanism can prevent proper tensioning of the belt or chain, causing slippage and overloading the bearing. In pillow block housings, corrosion is common in humid environments, especially if the paint was damaged during mounting.

To prevent these failures, verify that the housing is well anchored, that the bearing seats correctly, and that the tensioner mechanism moves without binding. If you need to replace a Sealmaster housing, at MR we help you identify the correct model and quote it promptly.

To recognize a failure in time, pay attention to abnormal noises: a constant hum may indicate lack of lubrication, while a knocking suggests damage to raceways or rollers. Vibration that increases over time is also a sign of wear or misalignment.

Excessive heating of the bearing area is another indicator. If the temperature rises more than normal, there may be excess grease, incorrect fit, or excessive load. Also visually check for lubricant leaks, which indicate a damaged seal, or if metal particles appear in the old grease.

When you detect a failure, record the code engraved on the bearing or housing, the shaft and base dimensions, and a photo of the part. With this data, at MR we quote the Sealmaster replacement you need. If the code is not legible, send us the photo and dimensions and we will respond promptly.

Good mounting starts with thoroughly cleaning the shaft and housing, verifying tolerances, and using the appropriate tools. Never strike the bearing directly: use a tube that applies force only on the ring being mounted with an interference fit. For Y-bearings, respect the inner ring fit and the shaft fastening.

Lubrication is key: use the recommended grease for the application, in the right amount. Both excess and lack of grease generate heat and premature failures. Establish a re-lubrication plan based on operating hours and environmental conditions, and record the interventions.

Periodic monitoring of vibrations, temperature, and noise allows detecting problems before they worsen. Also check the condition of the seals and the housing fastening. If you have doubts about which Sealmaster bearing or housing to use, at MR we advise you and quote the correct option.
