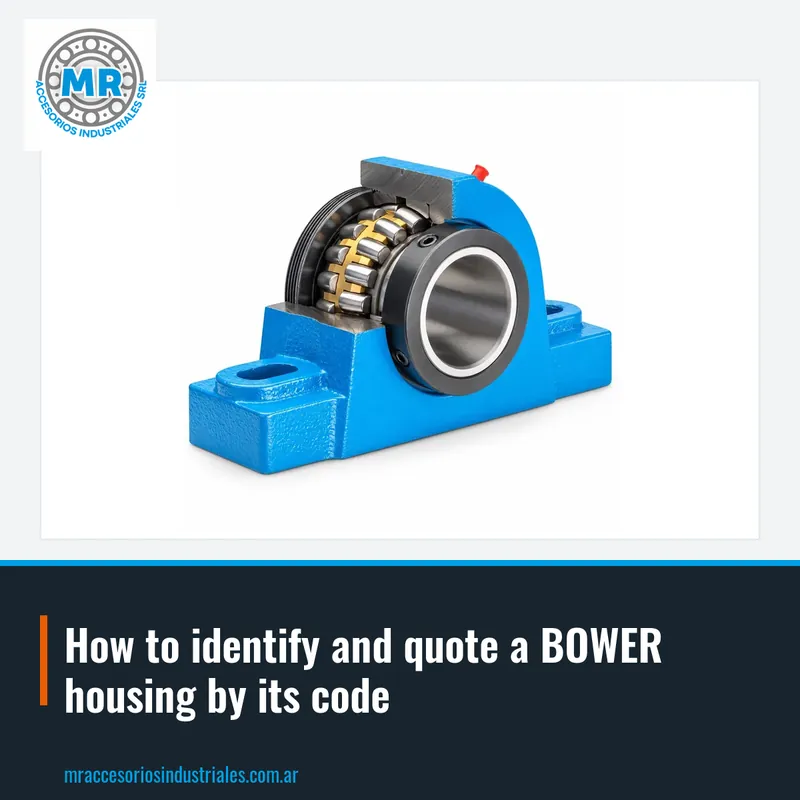

How to identify and quote a BOWER housing by its code

At MR Accesorios Industriales we are an official distributor of BOWER in Argentina. We work with the BOWER Type E pillow block housing line. If you are looking for BOWER housings for maintenance or for a new project, we can quote the exact code you need.

A pillow block housing holds the bearing and secures it to the frame, giving the shaft a fixed or floating support point. They are common in conveyors, agricultural machinery, food processing equipment, and other applications where quick and reliable mounting is required. Therefore, correctly identifying the code is the first step to ordering the right replacement.

To quote a BOWER housing, the most practical way is to send us the code engraved on the part or on the equipment plate. For example, codes EPB2-107, EPB2-203, and EPB2-207 correspond to Type E pillow block housings of the EPB2 series. With that information, we will quote it promptly.

The BOWER EPB2 series includes Type E pillow block housings with two base mounting holes. They are ordered by full code, because each code corresponds to a specific shaft and housing size.

Within this series, codes such as EPB2-107, EPB2-203, and EPB2-207 correspond to different sizes. Before ordering, it is advisable to measure the shaft and compare it with the housing currently installed. At MR we help you confirm the code that corresponds to your equipment.

These housings are used in conveyor belts, mixers, bucket elevators, and other equipment with shafts supported at two or more points. When ordering them, it is important to indicate whether the housing is fixed or floating, as some assemblies combine both types to absorb thermal expansion. You can also send us a photo of the current part so we can identify the correct replacement.

BOWER housings usually have the code engraved on the cast iron body or on an attached label. If the part is very deteriorated, you can measure the distance between the centers of the mounting holes and the diameter of the bearing seat. With those measurements, we can guide you on which BOWER code corresponds.

In addition to the code, it is useful to note the shaft diameter and how the assembly is fixed to the frame. If the equipment plate or spare parts list shows the code, send us that reference as well. When the equipment has multiple supports, check each housing separately: they are not always all the same size, and a complete survey avoids ordering twice. Also note the position of each one on the machine so the replacement is straightforward.

A common mistake when ordering housings is confusing the series or the final number of the code. For example, an EPB2-203 and an EPB2-207 are different sizes and are not interchangeable. Therefore, we recommend verifying the full code and, if in doubt, consulting us before placing the order. A front and side photo of the mounted housing help a lot to confirm the replacement.

BOWER housings are found in a wide variety of industrial and agricultural equipment. In the food industry, for example, they appear in belt conveyors. In agriculture, in augers and norias.

In mineral or aggregate processing plants, BOWER housings are mounted on screens, crushers, and large conveyor belts. There they work under heavy loads and in dusty environments, so it is advisable to check the condition of the seals at each maintenance stop.

They are also used in industrial fans, centrifugal pumps, and agitators. In all cases, the BOWER housing serves to align and secure the bearing to the frame, so that the shaft rotates aligned. If you have equipment with BOWER housings and need spare parts, we will quote the exact code you provide.

To quote a BOWER housing, ideally you should send us the full code that appears on the part, such as EPB2-107, EPB2-203, or EPB2-207. If the code is not legible, you can send us a photo of the housing and the main measurements: distance between holes, seat diameter, and height from the base to the shaft center.

It is also useful to indicate the shaft diameter and the number of housings on the equipment. At MR we work with the BOWER line and will quote the ones you need. If you have the equipment manual or spare parts list, the BOWER code usually appears there.

You do not need to indicate the equipment brand; the BOWER code is enough. However, if you are replacing a housing from another brand, you can provide that code and we will indicate the corresponding BOWER equivalent. That way we check together that the new housing is the one for your application.

One of the most frequent mistakes is ordering the housing without verifying the shaft diameter. It is always advisable to measure the shaft with a caliper to confirm, in an unworn area and near the support, because a worn shaft can give a misleading measurement. A housing with an incorrect seat can damage the bearing or cause vibrations.

Another mistake is not considering whether each support is fixed or floating. Some assemblies require one fixed and one floating housing to allow for thermal expansion of the shaft. If two fixed housings are mounted, the bearing may suffer unwanted axial loads and fail prematurely.

It is also important to tighten the base bolts evenly and verify alignment between housings before starting the equipment. At MR we guide you on correct mounting and quote the BOWER spare parts you need.

At MR Accesorios Industriales, as an official BOWER distributor, we distribute BOWER Type E pillow block housings of the EPB2 series. You can inquire about any BOWER code you have on your equipment, and we will quote it promptly. We are in Buenos Aires, Argentina.

To place your order, simply send us via WhatsApp or email the housing code, such as EPB2-107, EPB2-203, or EPB2-207, along with the quantity. If you are not sure of the code, send us a photo of the part and the measurements you can take. We help you identify the correct product.

We work with genuine BOWER product. Write to us with the code, measurement, or a photo and we will respond promptly.
